wiring diagram
« on: 08 Sep 2008 at 14:13 »
Hi, has anyone got a wiring diagram for a dragonfly, as most of the wiring is missing on mine and i do not know where to start or how, thankyou Susanne.
Logged

Offline MRD

  • Full Member
  • **
  • Join Date: Oct 2007
  • Posts: 145
  • Location: Hants. U.K.
Re: wiring diagram
« Reply #1 on: 08 Sep 2008 at 17:51 »
Hi Susanne

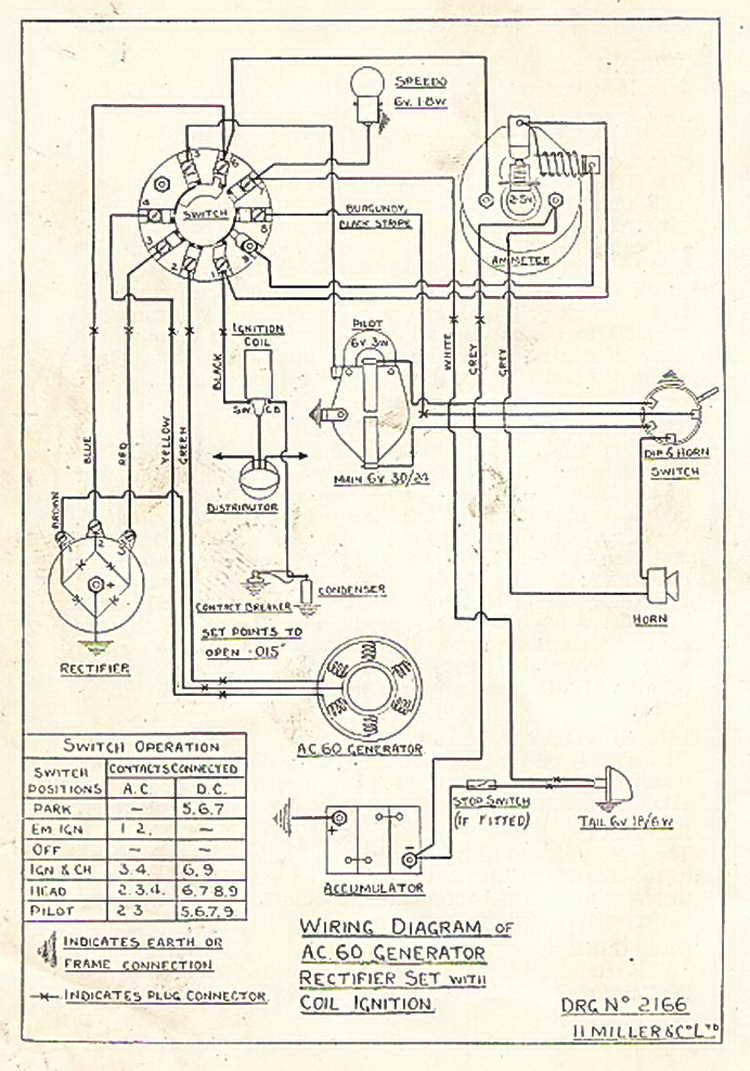

Here is a copy of the Dragonfly wiring digram, taken from the Miller electrical booklet which came with the bike when new.
Regards     Martin
